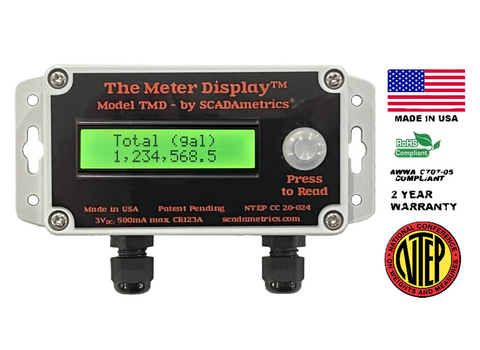

TheMeterDisplay™

Model TMD

Full-featured, yet economical, remote wall display for encoder-type water meters. Features include a large backlit LCD display, a pass-through port for an AMI/AMR endpoint, and a user-replaceable battery.

For a detailed, up-to-date list of compatible meters,
see the Meter Compatibility Matrix.

Housed Within a NEMA-4X Outdoor/Indoor Enclosure with Flange Wall Mounts.
Compatible with All Modern Makes/Models Encoder-Type Water Meters.
2 Year Warranty. Patented.

Key Features –

• Simple and Easy-to-Use: Just Press the Button!
• For Outdoor or Indoor Use

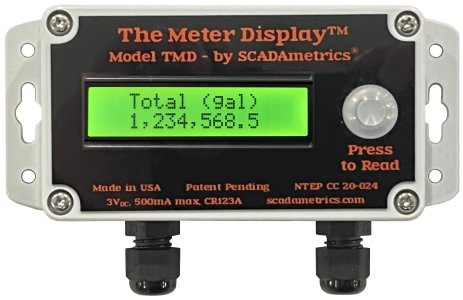

• Large, 2x16 Character Backlit Display
• Built-In Pass-Thru Port for Co-Connection to an AMI/AMR System (Works Even After Battery Depletion!)
• Low Power Consumption / 10+ Year Battery Life*

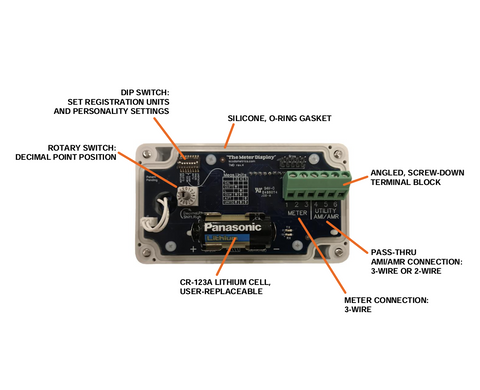

• User-Replaceable, Non-Proprietary Lithium Cell
• Displays Registration Units (Gallons, Cubic Feet, Cubic Meters, Liters, Acre Feet, Generic Units)
• Displays Correct Decimal Point Placement
• Reading Features a Comma Separator After Every 3rd Digit
• Compatible with All Late-Model, North American Encoder Type Water Meters (Sensus 4-9-digit, Neptune 6,8,9digit, Elster K-Frame Protocols).
• Displays Approximate Rate-of-Flow1. Requires Meter with 7/8/9-Digit Registration. 8/9-Digit Preferred.
• Displays Water Meter Serial Number
• Built to NEMA-4X, IP-66 Specifications. Not Submersible
• Rugged Polycarbonate Enclosure with Wall-Mount Flanges
• Easy Wiring, with Angled, Screw-Down Terminal Block
• Battery Voltage Display
• No Programming Required
• NTEP-Certified
